プロダクト細部
起源の場所: 中国
ブランド名: SHANAN
証明: CE, ISO
モデル番号: SA-500
支払及び船積みの言葉
最小注文数量: 1セット
価格: 交渉可能
パッケージの詳細: 箱
受渡し時間: 15作業日
支払条件: T/T
供給の能力: 100セット/月
マシンタイプ: |
コンベアタイプ |
に適しています: |
金属物の検査 |
機械用材料: |
304 ステンレス鋼の構造 |
警報方法: |
音声・光声アラーム |
拒絶: |
自動停止,押す棒と空気爆発 |
走行中のベルト速さ: |
27~38m/MIN |

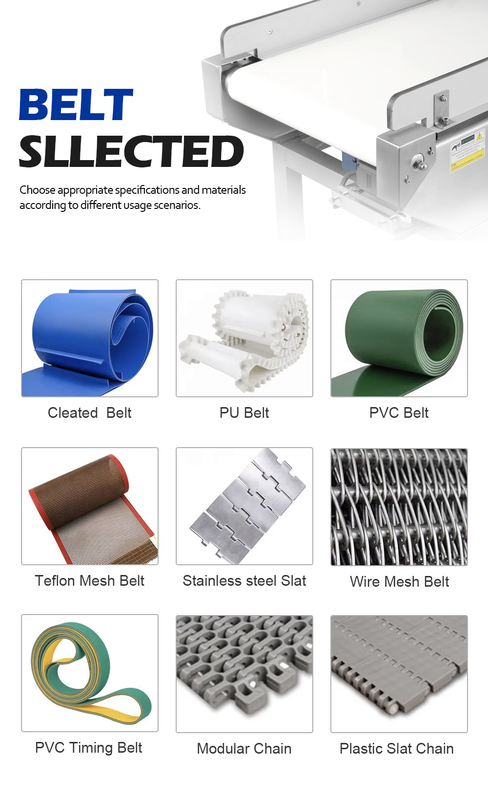

コンベアベルト: |
流行 |
表示方法: |
触覚画面ではなく ボタン制御 |
保証: |
12ヶ月 |
マシンタイプ: |
コンベアタイプ |
に適しています: |
金属物の検査 |
機械用材料: |
304 ステンレス鋼の構造 |
警報方法: |
音声・光声アラーム |
拒絶: |
自動停止,押す棒と空気爆発 |
走行中のベルト速さ: |
27~38m/MIN |
コンベアベルト: |
流行 |
表示方法: |
触覚画面ではなく ボタン制御 |
保証: |
12ヶ月 |
Fish Meat And Vegetable Processing Industrial Metal Detector / Metal detector
Quick details:
|
Machine specification
|
Normal machine
|
Customized width
|
|||||||
|
Detection Width (mm)
|
400
|
300 customized
|
|||||||
|
Detection Height
(mm)
|
100
|
120
|
150
|
200
|
250
|
300
|
350
|
400
|
|
|
Detection
Sensitivity
|
Fe(Φmm)
|
≥0.6
|
≥0.8
|
≥1.0
|
≥1.2
|
≥1.5
|
≥2.0
|
≥2.5
|
≥3.0
|
|
Non-Fe(Φmm)
|
≥1.0
|
≥1.2
|
≥1.5
|
≥2.5
|
≥3.0
|
≥3.5
|
≥4.0
|
≥4.5
|
|
|
304Sus(Φmm)
|
≥1.2
|
≥1.5
|
≥2.0
|
≥2.5
|
≥3.0
|
≥3.5
|
≥4.0
|
≥4.5
|
|
|
Alarm and rejector system
|
Automatic stop by alarm and sound or push rod or falling drop
|
||||||||
|
Machine structure
|
Full structure takes of stainless 304
|
||||||||
|
Machine size (mm)
|
L1520mm×W830mm×H1100mm
if customized it will according to customized size
|
||||||||
|
Machine weight
|
Around 250KG if customized the weight will different
|
||||||||
|
Voltage and power
|
220V 50Hz 90W
|
||||||||
|
Load ability of belt
|
5-25KG
conveyor belt running speed:25-30m/min or customized various
|
||||||||
|
Height of line
|
750mm±50mm can customized
|
||||||||
|
Note :Normal size machine have stocks. Unnormal size machine have to customized
|
|||||||||
Parameters:
|
|
|
Determine the types of metal that need to be tested. There are two main types of metals: ferrous and non-ferrous. The ferrous metal comes from iron. Non-ferrous metals are all others. Carefully inventory the types of metals that may eventually appear in your product. |
|
What size of metal contaminants do you need to filter? For this problem, you need to be pragmatic and realistic, because if you specify too much sensitivity, you will get too many false alarms and vice versa. |
|
Understand the operating environment and product characteristics - The operating environment includes temperature and whether water, dust or chemicals may come into contact with metal detectors and possible electric fields. In addition, is the product fresh or frozen, and the package is still exposed, scanned separately or in a box? All of these factors will be used to design the metal detector that best meets your needs. |
|
Reject System Considerations - The most common way is to use a propeller or blower to transport metal detection products. However, you can save space by stopping the conveyor and starting the warning light. Further more, an optional lockable collection container prevents unauthorized employees from accessing rejected products. |
